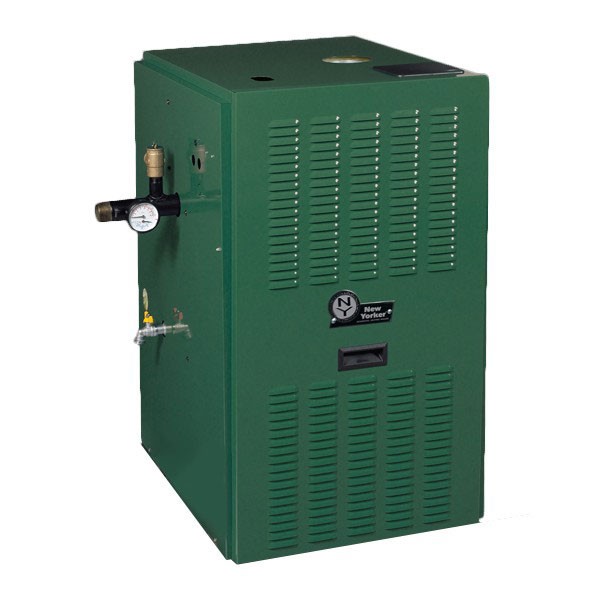

PVCG-B Cast Iron Gas Boilers

The cast iron boiler design maximizes heat transfer for the most efficient use of fuel... saving you valuable heating dollars. The PVCG-B comes standard with an evergy-saving thermal purge feature that circulates residual warm water in heating system prior to firing the boiler!

  • Power Vented Cat. III venting for horizontal/vertical (sidewall) termination
  • Integrated Boiler Control Combination high limit circulator relay and electronic ignition control
  • Energy-saving thermal purge feature circulates residual warm water in heating system prior to firing boiler
  • Cast iron heat exchanger Meets the ASME Boiler and Pressure Vessel Code
  • Step-opening gas valve Provides smooth & quiet start-up
MODELInput MBtuHOutput MBtuHAFUEDimensions
HxWxD
Water Content
Gal.
Weight
Lbs.
PVCG30B70.0 60.0 85.5 38.1x26.5x11.65 2.16 210
PVCG40B105.0 90.0 85.4 38.1x26.5x14.7 3.00 254
PVCG50B140.0 120.0 85.3 38.1x26.5x17.8 3.85 298
PVCG60B175.0 150.0 85.2 38.1x26.5x20.8 4.68 342
PVCG70B210.0 179.0 85.0 38.1x26.5x23.9 5.52 386
PVCG80B245.0 208.0 84.5 38.1x26.5x27 6.36 430
PVCG90B252.0 212.0 84.0 38.1x26.5x30 7.20 474

Warranty Information

  • All Parts for 12 months -
  • Heat Exchanger - Limited Lifetime

Available Documents
