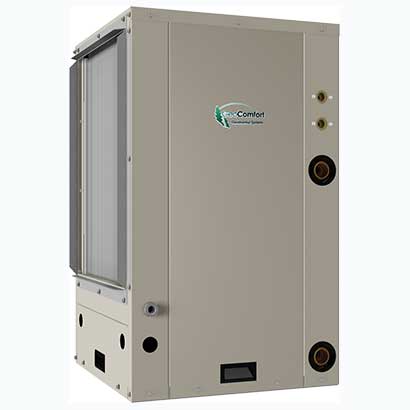

GeoComfort Element Series geothermal systems are expertly designed to be technologically advanced' exceptionally efficient and smaller than the alternatives. The Element Series compact vertical packaged model is the perfect unit for installations where space comes at a premium. This purpose-built model takes advantage of the many design innovations found throughout the GeoComfort product line and incorporates them into a compact and efficient system. The result is a heating and cooling system that is small in size but big in comfort. Single Stage (VS) or Two Stage (VT)
MODEL | Clg Capacity MBtuH | EER | Htg Capacity MBtuH | COP | Dimensions HxWxD | Weight Lbs. |
---|---|---|---|---|---|---|
VS009 | 10.9 | 18.1 | 8.7 | 3.6 | 30x21.5x21.5 | 187 |
VS012 | 11.9 | 18.1 | 9.4 | 3.6 | 30x21.5x21.5 | 187 |
VS015 | 16.0 | 19.5 | 11.6 | 4.0 | 37.3x22.5x22.5 | 234 |
VS018 | 21.4 | 20.0 | 16.3 | 3.9 | 37.3x22.5x22.5 | 240 |
VS024 | 26.0 | 19.7 | 19.4 | 4.0 | 37.3x22.5x22.5 | 248 |
VS030 | 30.6 | 18.5 | 23.9 | 4.0 | 37.3x22.5x22.5 | 265 |
VS036 | 37.8 | 18.0 | 30.2 | 30.2 | 41x25x27.9 | 271 |
VS042 | 43.6 | 18.6 | 32.0 | 3.8 | 41x25x27.9 | 357 |
VS048 | 51.2 | 17.6 | 40.3 | 3.6 | 41x25x27.9 | 360 |
VS060 | 60.0 | 16.9 | 46.9 | 3.6 | 41x25x27.9 | 275 |
VS072 | 70.1 | 15.1 | 53.2 | 3.3 | 41x25x27.9 | 367 |
VT024 | 25.8 | 18.6 | 19.4 | 4.0 | 37.3x22.5x22.5 | 248 |
VT036 | 37.4 | 17.7 | 29.5 | 3.9 | 41x25x27.9 | 271 |
VT048 | 51.3 | 18.9 | 38.3 | 3.9 | 41x25x27.9 | 361 |
VT060 | 61.3 | 17.6 | 46.3 | 3.8 | 41x25x27.9 | 373 |
VT072 | 71.8 | 16.5 | 51.9 | 3.4 | 41x25x27.9 | 375 |
