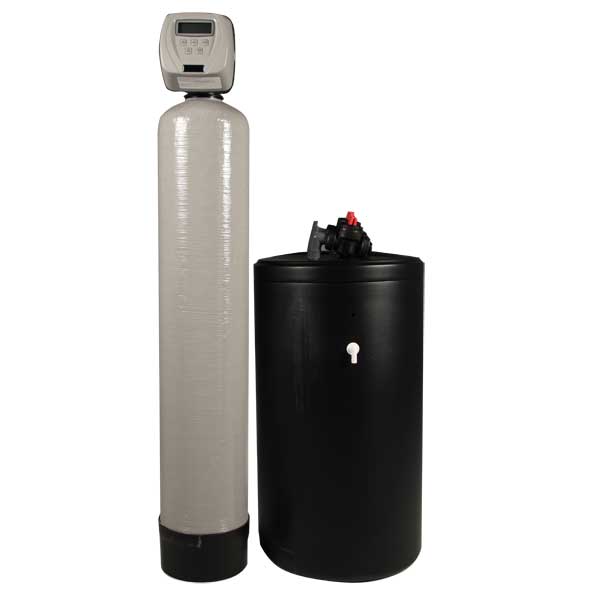

IM Series Water Softeners

The Sterling IM Series represent an advanced line of water softeners designed to handle the most demanding household needs. Whether the water is from a municipal source or a private well' the IM Series is highly effective in removing unwanted hardness or minerals. Use the IM Series alone or in combination with IM filters and neutralizers to tackle some of the most challenging water problems.

  • Advanced Microprocessor Control monitors system performance' water consumption and more
  • Adjustable Regeneration Cycle Sequences Programming can be adjusted to handle your exact water conditions.
  • Push-button Simplicity All settings and information retrievable at your fingertips.
  • Adjustable Regeneration Cycle Durations Allow the flexibility to maximize salt efficiency and conserve water usage.
  • Vortex Backwash System Scrubs iron and turbidity from the resin bed with each regeneration.
  • Non-corrosive Construction All components are made of fiberglass' stainless steel or similar materials to provide years of service without rust or corrosion.
  • Hefty Brine Tank Large' 300 lb. capacity tank reduces the frequency of salt refill. Salt support platform keeps the salt dry and stops “mushing.” Safety brine valve prevents overflow of salt brine.
  • Full Flow Bypass Valve Easy to use' two handle valve allows you to water the garden or yard with raw water. Large porting prevents pressure drop.
  • Modular Design Provides quick serving of the control. No bolts or screws means most repairs can be done without tools.
MODELTypeGrain Cap.
Grain Cap.
Peak GPMConinuous GPMSoftener SizeBrine Tank
Salt Storage
IM24Softner 24 15 12 8 8x44 18x33 300
IM30Softner 30 22 15 10 9x48 18x33 300
IM45Softner 45 34 18 12 10x54 18x33 300
IM60Softner 60 37 20 15 12x48 18x33 300
IM75Softner 75 60 22 18 14x65 18x40 300
IMC24Compact Softner 24 15 12 8 8x35 11x11x34 125
IMC30Compact Softner 30 22 15 10 10x35 11x11x34 125

Warranty Information

  • All Parts for 12 months -
